The Ultimate Guide to Copper 'O' Ring Grooves: Enhancing Sealing and Performance in High-Boost Engines
In the world of high-performance engines, precision and reliability are everything. At G.E., we understand that many of our customers are pushing their engines to the limits, whether it's with big shots off the bottle or by running boost levels above 20 psi (2 bars). To ensure your engine can handle these extreme conditions, we recommend incorporating a copper "O" ring groove into your build.

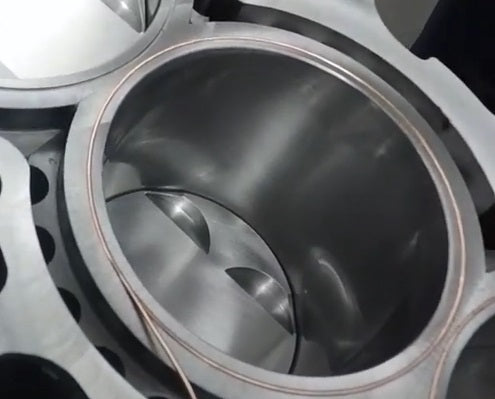

The copper "O" ring groove is more than just a minor enhancement—it's a crucial feature that significantly boosts the sealing capability of your engine. This groove is carefully machined into the top of each cylinder, measuring 0.040" wide and 0.030" deep. Into this groove, we insert an 18-gauge, 0.040" thick copper wire.
Once the wire is set, it forms a crush ring, with 0.010" protruding from each cylinder. This creates an additional seal that provides an enhanced, reliable barrier, ensuring that your engine maintains cylinder pressure and avoids leaks under high stress. As the copper flattens out, it forms a slight ridge of pressure around the cylinder.
Copper is the material of choice for the "O" ring groove for several key reasons. First and foremost, copper is highly malleable, allowing it to conform perfectly to the groove and the cylinder head, creating an effective seal. This malleability is crucial in high-performance engines, where the ability to maintain a tight seal under varying pressures and temperatures is essential.
Copper also has excellent thermal conductivity. This property ensures that heat is evenly distributed across the seal, reducing the risk of hot spots that could lead to gasket failure. In high-boost or nitrous oxide applications, where temperatures can spike dramatically, even the slightest heat spikes should be taken into consideration. For example, a stainless steel O-ring is rigid and can trap heat.
Creating the copper "O" ring groove is a process that demands precision. At G.E., we utilize advanced CNC machinery to cut the groove into the top of each cylinder. The groove is meticulously machined to be 0.040" wide and 0.030" deep. These dimensions are critical to ensure the copper wire fits perfectly, with enough material left protruding to create the necessary crush when the head is torqued down.
The 18-gauge copper wire is then set into the groove. This wire is specifically chosen for its thickness and strength, allowing it to withstand the high pressures found in performance engines. As the head is torqued onto the block, the copper wire compresses, forming a crush ring. This ring acts as an additional barrier, preventing any gases from escaping the combustion chamber and ensuring that the cylinder head remains tightly sealed against the block.
For engines running at high boost levels or using nitrous oxide, the copper "O" ring groove is not just an enhancement—it's a necessity. The additional seal provided by the copper ring significantly reduces the risk of head gasket failure, which is a common issue in high-performance engines.
Moreover, the combination of the step deck process and the copper "O" ring groove creates a synergistic effect. The step deck ensures that the gasket is evenly compressed, while the copper "O" ring adds an extra layer of security, making the entire assembly more reliable. This combination is particularly beneficial for turbocharged and supercharged engines, where maintaining pressure is key to performance.
If you're planning a high-performance build, especially one involving forced induction or high compression, the copper "O" ring groove should be on your list of considerations. Engines running over 20 psi of boost or those using large nitrous shots are particularly prone to gasket issues, and the copper "O" ring groove provides a reliable solution.
Even in naturally aspirated engines with high-compression pistons, the copper "O" ring groove offers added peace of mind. It ensures that your engine can handle the increased pressures without compromising the seal between the head and the block, leading to more consistent performance and reduced risk of failure.
While the copper "O" ring groove offers significant advantages, it's important to follow certain guidelines to ensure optimal performance and avoid potential issues.
By following these guidelines, you can maximize the effectiveness of the copper "O" ring groove and ensure that your engine is equipped to handle the most demanding conditions.
