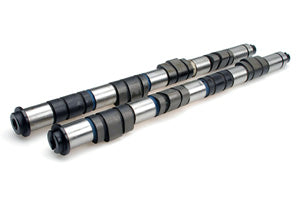

Honda H22 Stage 2 Camshafts - Normally Aspirated/High Boost Profile

BC0032

All motor with 11.5:1+ compression or high boost (18lbs+) applications. Use with CAI, H, E, ECU, A/F mods. Excellent street manners. Requires kit BC0030 or BC0030S.

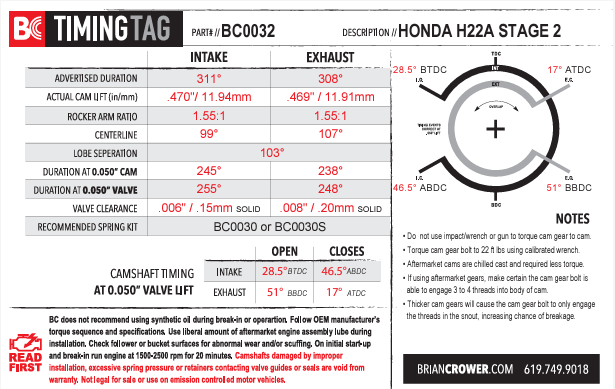

Rocker Ratio: 1.55:1 mid, 1.5:1 sec, 1.45:1 pri.

IMPORTANT INFORMATION: Do not use an impact wrench/gun to torque cam gear to the camshaft. Torque cam gear bolt to 22 ft lbs. Aftermarket cams are chilled cast and require less torque than the OEM/factory steel cams. If using aftermarket gears, make certain the cam gear bolt can engage 3 to 4 threads into the body of the cam. Thicker gears will cause the cam bolt to only engage the threads in the snout, increasing the chance of breakage.
