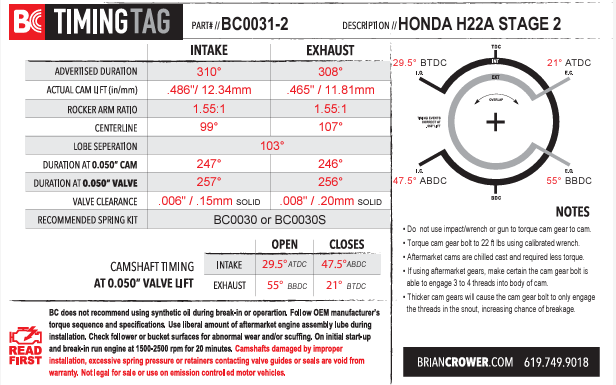

Honda H22 Stage 2 Camshafts - Forced Induction Spec

BC0031-2

NEW PROFILE DESIGN - Short duration profile builds cylinder pressure by reducing overlap, high lift for more air intake. Requires kit BC0030 or BC0030S.

Rocker Ratio: 1.55:1 mid, 1.5:1 sec, 1.45:1 pri.

IMPORTANT INFORMATION: Do not use an impact wrench/gun to torque cam gear to the camshaft. Torque cam gear bolt to 22 ft lbs. Aftermarket cams are chilled cast and require less torque than the OEM/factory steel cams. If using aftermarket gears, make certain the cam gear bolt can engage 3 to 4 threads into the body of the cam. Thicker gears will cause the cam bolt to only engage the threads in the snout, increasing the chance of breakage.
