Fitment:
Toyota 2JZ-GTE / 2JZ-GE
Engineering Dimensions
-
Center-to-Center Length: 142.00mm (5.591")
-
Rod Beam Style: Patented Three-Pocket Design (I-Beam Hybrid)
-
Big End Bore (Housing Bore): 55.033mm (2.1670")
-
Big End Width: 25.88mm (1.019")
-
Pin End Bore Size (Wrist Pin): 22.00mm (0.866")
-
Wrist Pin Journal Bushing Width: 25.40mm (1.000")
-
Fastener Size: 3/8" x 1.600"
-
Average Rod Weight: 656 grams each
⚠️ Technical Build Warning (Read Before Purchasing)
This is the Standard Length (142.00mm / 5.591") BoostLine connecting rod set. It is meticulously engineered for factory-stroke (86.00mm) 2JZ crankshafts.
-
Compatibility: Pairs perfectly with factory-stroke performance pistons, including standard-stroke Manley Platinum or CP-Carrillo shelf kits.
-
Stroker Warning: Do NOT use this standard 142mm rod length if you are building a custom long-stroke engine (such as a 3.4L stroker using 94mm stroke cranks) unless you are running specialized short compression height pistons designed for it.
Premium Materials & Manufacturing Features
-
Patented 3-Pocket Core: This revolutionary design provides a 60% improvement in bending strength and a 20% stress reduction under high tension when compared to conventional H-beam rods. It drastically enhances big-end stability under severe tensile loads.
-
1500 Flywheel HP Rating: Forged from ultra-pure 4340 chromoly steel. Explicitly rated to handle up to 1,500 horsepower on high-boost six-cylinder applications.
-
Aerospace-Grade CMM Inspection: Every individual rod undergoes a thorough 26-point coordinate measuring machine (CMM) quality check at the BoostLine Mentor, Ohio facility. A custom inspection card detailing exact dimensions to within .0001" is included in every box.
-
Premium AMPCO Bronze Bushings: Features high-grade AMPCO bronze wrist pin bushings to resist pin-end galling under intense cylinder pressure.
What's Included In The Box?

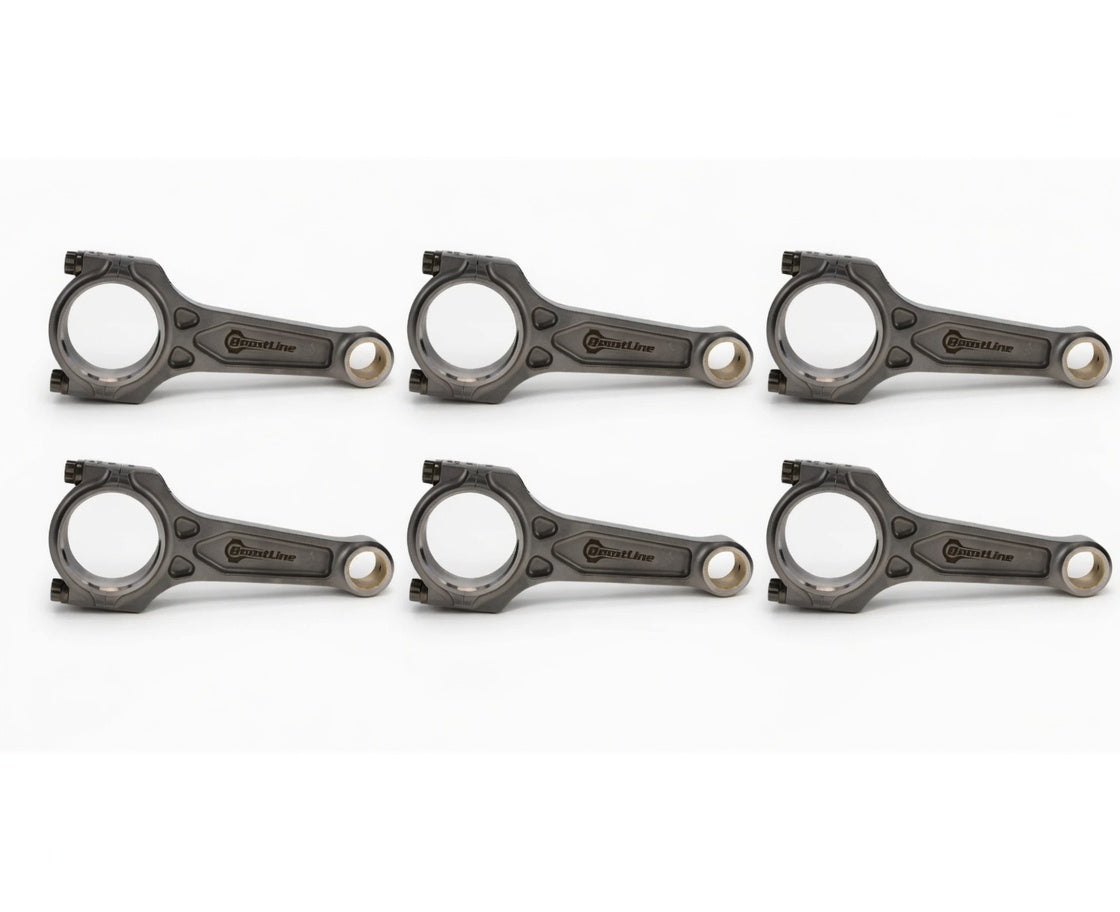

- (6) BoostLine Forged 4340 Steel 142mm Connecting Rods
- (12) ARP 2000 3/8" High-Tensile Rod Bolts (220,000 psi)
- (1) Custom 26-Point CMM Detail Quality Inspection Card
- (1) Packet of ARP Fastener Assembly Lubricant
PN: TY5591-866
G.E. PN: RWIIS-TY5591-866
